Product Summary

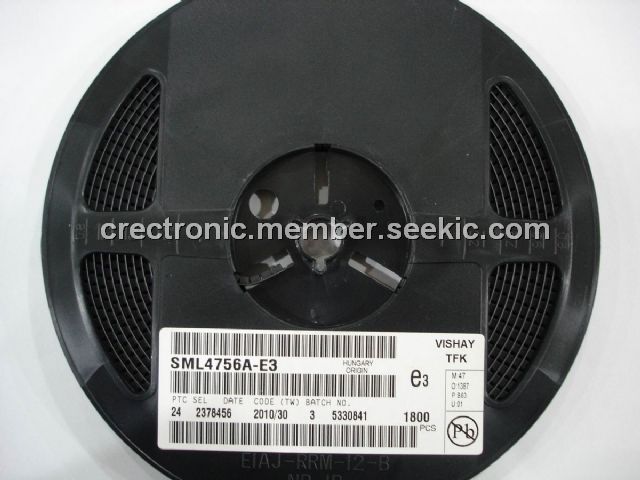

The SML4756A-E3 is a Surface Mount Zener Diode.

Parametrics

SML4756A-E3 absolute maximum ratings: (1)Power dissipation TL = 75 ℃ Ptot: 1000 mW; (2)Junction temperature Tj: 150 ℃; (3)Storage temperature range Tstg: - 65 to + 150 ℃.

Features

SML4756A-E3 features: (1)Plastic package has underwriters laboratory flammability classification 94 V-0; (2)For surface mounted applications; (3)Low Zener impedance; (4)Low regulation factor; (5)High temperature soldering guaranteed:; (6)260 ℃/10 s at terminals; (7)Standard voltage tolerance is 10 %, suffix A 5 %.

Diagrams

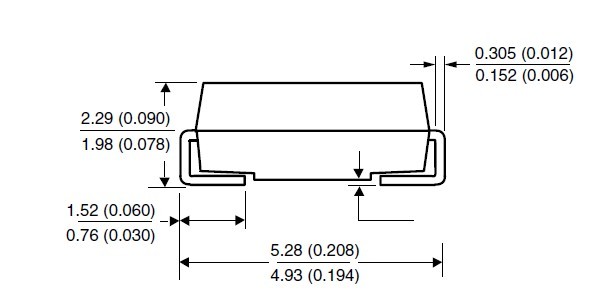

SML4756A-E3 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SML4756A-E3/5A
SML4756A-E3/5A
Vishay Semiconductors
Zener Diodes 47 Volt 1 Watt 5%
Data Sheet
0-1: $0.16
1-10: $0.15
10-50: $0.14
50-100: $0.13
SML4756A-E3/61
SML4756A-E3/61
Vishay Semiconductors
Zener Diodes 47 Volt 1.0W 5%
Data Sheet
0-1: $0.16
1-50: $0.14
50-100: $0.13
100-500: $0.12
