Product Summary

The TLC542IN is a CMOS converter built around an 8-bit switched-capacitor successive-approximation analog-to-digital converter. The TLC542IN is designed for serial interface to a microprocessor or peripheral via a 3-state output with three inputs [including I/O CLOCK, CS (chip select), and ADDRESS INPUT]. The TLC542IN allows high-speed data transfers and sample rates of up to 40,000 samples per second. In addition to the high-speed converter and versatile control logic, an on-chip 12-channel analog multiplexer can sample any one of 11 inputs or an internal self-test voltage, and the sample and hold is started under microprocessor control. At the end of conversion, the end-of-conversion (EOC) output pin goes high to indicate that conversion is complete.

Parametrics

TLC542IN absolute maximum ratings: (1)Supply voltage, VCC: 6.5 V; (2)Input voltage range (any input): –0.3 V to VCC + 0.3 V; (3)Output voltage range, VO: –0.3 V to VCC+ 0.3 V; (4)Peak input current range (any input), Ip-p): ±20 mA; (5)Peak total input current (all inputs), IP: ±30 mA; (6)Operating free-air temperature range: 0 to 70℃; (7)Storage temperature range, Tstg: –65 to 150℃; (8)Case temperature for 10 seconds, TC: FN package: 260℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: DW or N package: 260℃.

Features

TLC542IN features: (1)8-Bit Resolution A/D Converter; (2)Microprocessor Peripheral or Stand-Alone Operation; (3)On-Chip ; (4)Built-In Self-Test Mode; (5)Software-Controllable Sample and Hold; (6)Total Unadjusted Error ... ±0.5 LSB Max; (7)Direct Replacement for Motorola MC145041; (8)Onboard System Clock; (9)End-of-Conversion (EOC) Output; (10)Pinout and Control Signals Compatible With the TLC1542/3 10-Bit A/D Converters; (11)CMOS Technology.

Diagrams

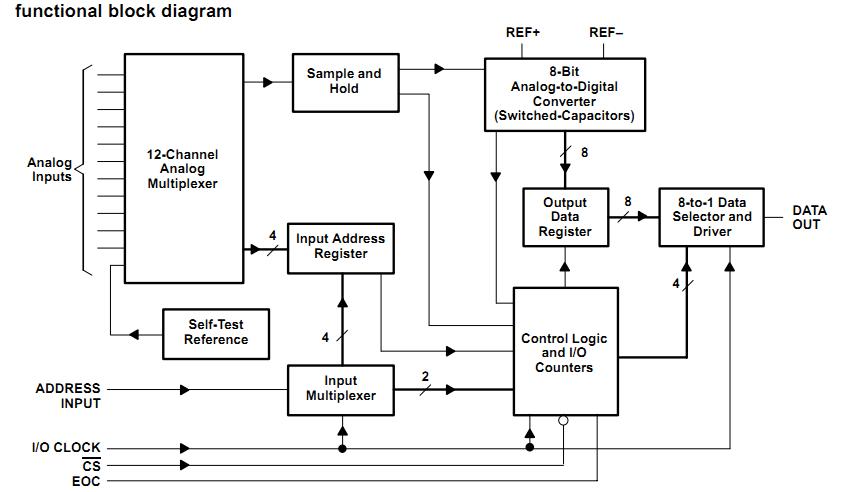

TLC542IN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLC542IN
TLC542IN
Texas Instruments
ADC (A/D Converters) 8bit A/D w/Osc
Data Sheet
0-1: $2.39
1-25: $2.18
25-100: $1.75
100-250: $1.52
TLC542INE4
TLC542INE4
Texas Instruments
ADC (A/D Converters) 8-Bit 25 kSPS Serial-Out
Data Sheet
0-1: $1.92
1-25: $1.84
25-100: $1.75
100-250: $1.29
