Product Summary
The XC62KN2102MR is a highly precise, low power consumption, negative voltage regulator, manufactured using CMOS and laser trimming technologies. The XC62KN2102MR achieves high output currents with small input-output voltage differentials, and consists of a high precision voltage reference, an error correction circuit, and an output driver with current limitation. SOT-23 (150mW), SOT-89 (500mW), USP-6B (100mW) and TO-92 (300mW) packages are available. Applications of the XC62KN2102MR are: (1)Battery powered equipment; (2)Portable & cellular phones; (3)Various portable equipment; (4)Power supply for GaAs applications.
Parametrics
XC62KN2102MR absolute maximum ratings: (1)Input Voltage VIN: -12.0 V; (2)Output Current IOUT: 200 mA; (3)Output Voltage VOUT: -VDD-0.3 to VIN+0.3 V; (4)Power Dissipation: 150mW; (5)Operating Temperature Range Topr: -30 to +80 ℃; (6)Storage Temperature Range Tstg: -40 to +125 ℃.
Features
XC62KN2102MR features: (1)Dropout Voltage: 0.12V@50mA (VOUT=-5.0V): 0.38V@100mA; (2)Maximum Output Current : 100mA (within MAX power; (3)dissipation, VOUT= -5.0V); (4)Output Voltage Range : -2.1V to -6.0V in 100mV increments -5.0, -4.0, -3.0V, -2.5V standard; (5)Highly Accurate : Setting output voltage ±2% (±1% for semi-custom products); (6)Low Power Consumption : 3.0μA @ VOUT= -5.0V (TYP.); (7)Output Voltage Temperature Characteristics: ±100ppm/℃ (TYP.); (8)Line Regulation : 0.1%/V (TYP.); (9)CMOS Low Power Consumption.

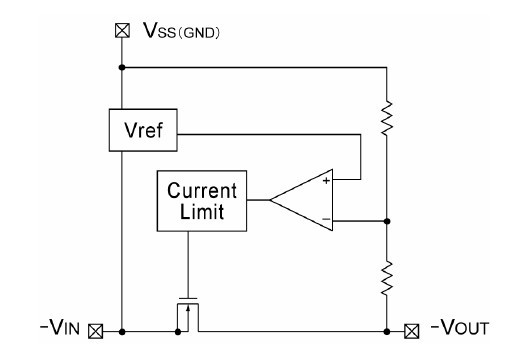

Diagrams
 |
