Product Summary

The DF14-20P-1.25H(26) is a 1.25mm Pitch Super Low profile Crimping Connector. The applications of the DF14-20P-1.25H(26) are: LCD, Note PC, Mobile Terminal Small business equipment, Video camera.

Parametrics

DF14-20P-1.25H(26) absolute maximum ratings: (1)Current rating:1A; (2)Voltage rating:150V AC; (3)Operating Temperature Range:-35℃ to +85℃; (4)Operating Moisture Range:40% to 80%; (5)Storage Temperature Range:-10℃ to +60℃; (6)Storage Moisture Range:40% to 70%.

Features

DF14-20P-1.25H(26) features: (1)Super Low Profile; (2)Correspond to Automatic Mounting; (3)Four Wall Type Without Friction to Board by Socket.

Diagrams

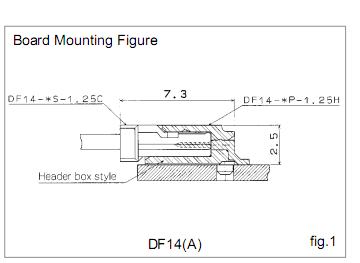

DF14-20P-1.25H(26) view

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DF14-20P-1.25H(26)
DF14-20P-1.25H(26)
Hirose Connector
Headers & Wire Housings 1.25MM SNG ROW HDR 20P RA SMT TIN
Data Sheet
0-1: $1.71
1-25: $1.32
25-100: $1.06
100-250: $0.87
