Product Summary

The DLW31SN900SQ2L is a Chip Common Mode Choke Coil.

Parametrics

DLW31SN900SQ2L specifications: (1)Common Mode Impedance(at 100MHz/20℃): 90ohm±25%; (2)Rated Current: 370mA; (3)Rated Voltage: 50Vdc; (4)Insulation Resistance (min.): 10M ohm; (5)Withstand Voltage: 125Vdc; (6)DC Resistance: 0.3ohm max; (7)Operating Temperature Range: -40 to +85℃.

Features

DLW31SN900SQ2L features: (1)Impedance: 90 Ohm; (2)DC Resistance (DCR): 300 mOhm Max; (3)Current: 370mA; (4)Filter Type: Data, Signal Line; (5)Mounting Type: Surface Mount; (6)Package / Case: Horizontal, 4 PC Pad; (7)Lead Free Status: Lead Free; (8)RoHS Status: RoHS Compliant.

Diagrams

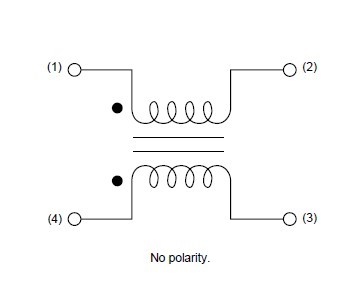

DLW31SN900SQ2L Equivalent Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DLW31SN900SQ2L
DLW31SN900SQ2L
Murata
Common Mode Inductors (Chokes) 1206 90ohm@100MHz Tol 25%
Data Sheet
0-1: $0.77
1-50: $0.68
50-100: $0.64
100-500: $0.50
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DLW31SH222SQ2L
DLW31SH222SQ2L
Murata
Common Mode Inductors (Chokes) 1206 2200ohm 32volt DCR 1.6ohm
Data Sheet
0-1: $0.84
1-50: $0.81
50-100: $0.65
100-500: $0.53
DLW31SN102SQ2L
DLW31SN102SQ2L
Murata
Common Mode Inductors (Chokes) 1206 1000ohm@100MHz Tol 25%
Data Sheet
0-1: $0.77
1-50: $0.68
50-100: $0.64
100-500: $0.50
DLW31SN161SQ2L
DLW31SN161SQ2L
Murata
Common Mode Inductors (Chokes) 1206 160ohm 50volt DCR 0.4ohm
Data Sheet
0-1: $0.77
1-50: $0.68
50-100: $0.64
100-500: $0.50
DLW31SN222SQ2L
DLW31SN222SQ2L
Murata
Common Mode Inductors (Chokes) 1206 2200ohm 50volt DCR 1.2ohm
Data Sheet
0-1: $0.77
1-50: $0.68
50-100: $0.64
100-500: $0.50
DLW31SN261SQ2L
DLW31SN261SQ2L
Murata
Common Mode Inductors (Chokes) 1206 260ohm 50volt DCR 0.5ohm
Data Sheet
0-1: $0.77
1-50: $0.68
50-100: $0.64
100-500: $0.50
DLW31SN601SQ2L
DLW31SN601SQ2L
Murata
Common Mode Inductors (Chokes) 1206 600ohm@100MHz Tol 25%
Data Sheet
0-1: $0.77
1-50: $0.68
50-100: $0.64
100-500: $0.50
