Product Summary

The SPW47N60C3 is a cool MOS power transistor.

Parametrics

SPW47N60C3 absolute maximum ratings: (1)Continuous drain current, TC = 25 ℃: 47A; TC = 100 ℃, ID: 30A; (2)Pulsed drain current, tp limited by Tjmax ID puls: 141; (3)Avalanche energy, single pulse, ID = 10 A, VDD = 50 V, EAS: 1800 mJ; (4)Avalanche energy, repetitive tAR limited by Tjmax1), ID = 20 A, VDD = 50 V: EAR 1; (5)Avalanche current, repetitive tAR limited by Tjmax IAR: 20 A; (6)Gate source voltage static VGS: ±20 V; (7)Gate source voltage AC (f >1Hz) VGS: ±30; (8)Power dissipation, TC = 25℃ Ptot: 415 W; (9)Operating and storage temperature Tj , Tstg: -55 to +150 ℃.

Features

SPW47N60C3 features: (1)New revolutionary high voltage technology; (2)Worldwide best RDS(on) in TO 247; (3)Ultra low gate charge; (4)Periodic avalanche rated; (5)Extreme dv/dt rated; (6)Ultra low effective capacitances.

Diagrams

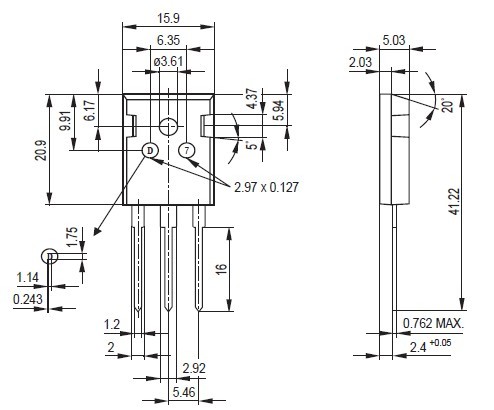

SPW47N60C3 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SPW47N60C3
SPW47N60C3

Infineon Technologies

MOSFET COOL MOS N-CH 650V 47A

Data Sheet

0-1: $7.27
1-10: $6.11
10-100: $5.61
100-250: $4.79
