Product Summary

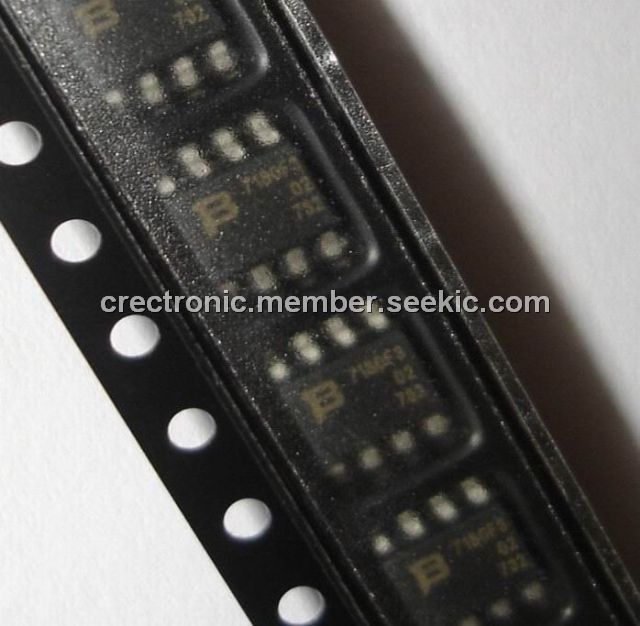

The TISP7180F3DR-S is a 3-point overvoltage protector designed for protecting against metallic (differential mode) and simultaneous longitudinal (common mode) surges. Each terminal pair has the same voltage limiting values and surge current capability. This terminal pair surge capability ensures that the TISP7180F3DR-S can meet the simultaneous longitudinal surge requirement which is typically twice the metallic surge requirement.
Parametrics
TISP7180F3DR-S absolute maximum ratings: (1)Repetitive peak off-state voltage, 0 ℃ < TA < 70 ℃: 145V; (2)Non-repetitive peak on-state current, 0 ℃ < TA < 70 ℃, 50 Hz, 1 s D Package: 4.3A; SL Package, ITSM: 7.1A; (3)Initial rate of rise of on-state current, Linear current ramp, Maximum ramp value < 38 A diT/dt: 250 A/μs; (4)Junction temperature TJ: -65 to +150 ℃; (5)Storage temperature range Tstg: -65 to +150 ℃.
Features
TISP7180F3DR-S features: (1)IDRM Repetitive peak offstate current: ±10μA; (2)V(BO) Breakover voltage: ±180V; (3)V(BO) Impulse breakover voltage: ±198V; (4)I(BO) Breakover current: ±0.1 to ±0.8 A; (5)VT On-state voltage: ±5 V; (6)IH Holding current: ±0.15A.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TISP7180F3DR-S |
Bourns |
Sidacs Triple Element Bidirectional |
Data Sheet |
|
|
||||||
