Product Summary

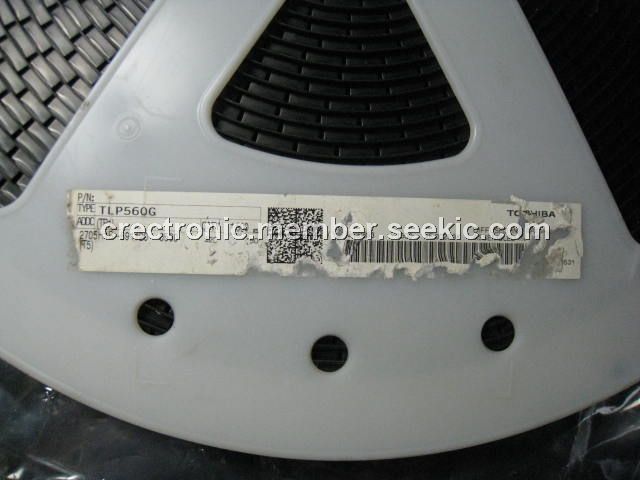

The TLP560G is a TOSHIBA Photocoupler. The TOSHIBA TLP560G consists of a Photo-Triac optically coupled to a gallium arsenide infrared emitting diode in a six lead plastic DIP package.
Parametrics
TLP560G absolute maximum ratings: (1)Forward current IF: 50 mA; (2)Forward current derating (Ta ≥ 53℃) △IF / ℃: -0.7 mA / ℃; (3)Peak forward current (100μs pulse, 100pps) IFP: 1 A; (4)Reverse voltage VR: 5 V; (5)Junction temperature Tj: 125 ℃; (6)Storage temperature range Tstg: -55 to 125 ℃; (7)Operating temperature range Topr: -40 to 100 ℃; (8)Lead soldering temperature (10s) Tsol: 260 ℃; (9)Isolation voltage (AC, 1min., R.H. ≤ 60%) BVS: 2500 Vrms.
Features
TLP560G features: (1)Peak off-state voltage: 400V(min.); (2)On-state current: 100mA(max.); (3)Isolation voltage: 2500Vrms(min.); (4)UL recognized: File No. E67349; (5)Isolation operating voltage: 2500Vac or 300Vdc for isolation group C1; (6)Trigger LED current.

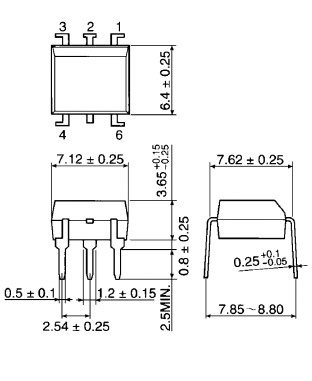

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP560G |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
