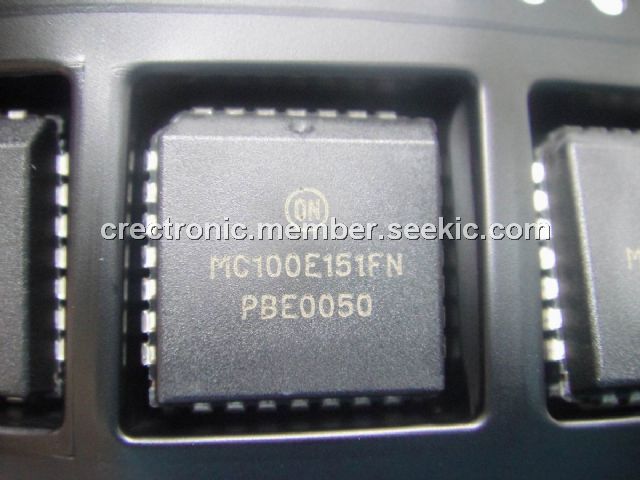

Product Summary
The MC100E151FN is a 6-Bit D Register which contains 6 D-type, edge-triggered, master-slave flip-flops with differential outputs. Data enters the master when both CLK1 and CLK2 are LOW, and is transferred to the slave when CLK1 or CLK2 (or both) go HIGH. The asynchronous Master Reset(MR) makes all Q outputs go LOW. The MC100E151FN contains temperature compensation.
Parametrics
MC100E151FN absolute maximum ratings: (1)VCC PECL Mode Power Supply VEE = 0 V: 8 V; (2)VEE NECL Mode Power Supply VCC = 0 V: -8 V; (3)VI PECL Mode Input Voltage: 6V; (4)NECL Mode Input Voltage; (5)Iout Output Current Continuous: 50mA; Surge: 100mA; (6)TA Operating Temperature Range: 0 to +85 ℃; (7)Tstg Storage Temperature Range: -65 to +150 ℃.
Features
MC100E151FN features: (1)1100 MHz Min. Toggle Frequency; (2)Differential Outputs; (3)Asynchronous Master Reset; (4)Dual Clocks; (5)PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V; (6)NECL Mode Operating Range: VCC = 0 V with VEE = -4.2 V to -5.7 V; (7)Internal Input 50 kΩ Pulldown Resistors; (8)Transistor Count = 304 devices; (9)Pb-Free Packages are Available.

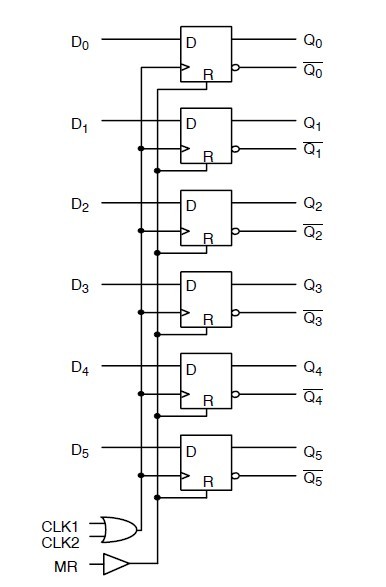

Diagrams
